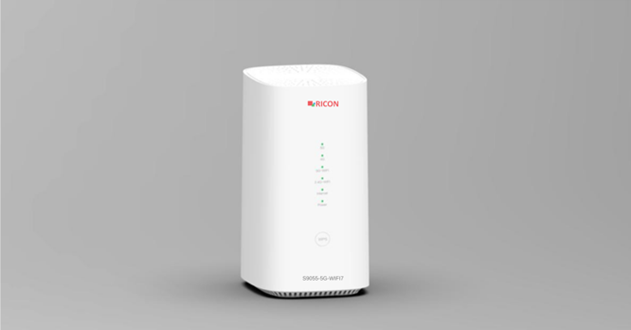

9055-5G-WIFI7

Product Features

High-Speed Internet Experience

This device supports commonly used frequency bands worldwide, is compatible with both 5G SA and NSA networks, and provides users with an excellent 5G internet experience by offering support for up to 200M bandwidth on the 5G network.

Under the SA network the device supports 5CC carrier aggregation; under the NSA network it supports a rich set of ENDC combinations, providing maximum download and upload speeds.

Under the LTE network the device can support up to 6CC downlink carrier aggregation and 2CC uplink carrier aggregation, thereby providing outstanding uplink and downlink speeds even on the 4G network.

The Latest WiFi 7 Standard, Dual Band Simultaneous Connection

This device supports the latest WiFi 7 standard, offers 2.4GHz and 5GHz dual band support, supports 2x2 MIMO technology with 160M ultra-wide bandwidth, and reaches a theoretical speed of up to 3600Mbps, providing users with an ultra-high-speed WiFi access experience.

The device uses OFDMA technology, which allows it to transmit data packets to multiple terminal devices simultaneously; combined with MU-MIMO technology, it supports multiple terminal devices accessing and benefiting from services at the same time.

The latest Multi-Link Operation technology allows a single STA device to connect simultaneously over multiple bands, which strongly increases throughput and reduces latency.

Various Network Options and Multi-Service Support

The product supports mobile cellular and/or wired broadband as uplink; it also supports WiFi and/or LAN ports for terminal device access. Network setup is far more flexible.

The device is also equipped with an RJ11 voice interface. When paired with a phone, it can support voice call services over VoLTE/VoNR. Multiple services such as internet access, video streaming and voice calls can be performed at the same time, meeting a wide range of user needs.

High Availability with Dual Link Uplink

The product supports configuring both cellular and wired uplink connections at the same time. Users can set link priority and detection criteria. When the primary link is disconnected, the device can automatically switch to the backup link, which significantly increases the device's high availability.

The device supports a self-healing feature. In the event of a cellular network fault that causes a network outage, once the network recovers the device automatically reconnects and restores the network connection.

Device Protection Against Theft and Misuse

The device can be customized for use with specific PLMNs, thereby protecting the rights and interests of operators.

It supports 5G frequency band and cell locking functions. The device cannot be used when taken outside its designated area of use; this ensures the security of the equipment and prevents it from being used for other purposes.

The device supports different administrator account and authorization levels that can be customized according to the operator's requirements.

Hardware Features

CPU

Realtek Dual-core ARM Cortex-A55 @1.2 GHz and Tri-core RISC-V @800 MHz for WiFi Offload

Memory

DDR: 512MB

Nand Flash: 128MB

Cellular Chip

Samsung S5300

WiFi Chip

Realtek

Cellular Features

3GPP Compliance

Rel-16

Supported Technology

5G NR NSA & SA: Option 3x/3a/3 and Option 2 4G LTE: TDD & FDD

3G UMTS: WCDMA

UE Category

LTE DL Cat 20, UL Cat 18

MIMO

NR: DL 4x4, UL 2x2

Carrier Aggregation

NR CA: DL 5CC 200M; UL 2CC 200M

LTE CA：DL 6CC 120M; UL 2CC 40M

Theoretical Peak Speed

NR SA: 4.67Gbps DL/1.25Gbps UL NR NSA: 6.47Gbps DL/2.0Gbps UL

LTE: 2.0Gbps DL/211Mbps UL

Cellular Antennas

4 built-in Omni-Directional antennas

SIM Support

1 * nano SIM

1 * eSIM (Opsiyonel)

WiFi Features

WiFi Protocol

2.4 GHz: IEEE 802.11 b/g/n/ax/be 5G Hz: IEEE 802.11 a/n/ac/ax/be

MIMO

2.4 GHz: 2x2 MIMO

5 GHz: 2x2 MIMO

WiFi Bandwidth

2.4 GHz: 20/40 MHz

5 GHz: 20/40/80/160 MHz

Theoretical Throughput

Total theoretical WiFi throughput: 3600Mbps

2.4GHz: 688Mbps (2ss 40MHz)

5GHz: 3600Mbps (2ss 160MHz)

WiFi Antennas

2.4 GHz: 2 built-in Omni-Directional antennas

5 GHz: 2 built-in Omni-Directional antennas

Interfaces, Buttons and Indicator Features

WAN Port

1 * 2.5GE port,100M/1000M/2500M adaptive, type：RJ45

LAN Port

3 * GE ports,100M/1000M adaptive，type：RJ45

Voice Port

1 * FXS VoLTE/VoNR port, type: RJ11

USB Port

1* USB2.0

Power Supply Port

1 * DC-Jack port

Other Port

2 * TS9 port, for external 5G antenna connection

pSIM Interface

1 * SIM slot 4FF (nano SIM)

Indicators

1 * 5G (Green / Yellow / Red)

1 * 4G (Green / Yellow / Red)

1 * WiFi (Green)

1 * Phone or Internet (Green)

1 * System (Green)

1 * Power (Green)

Buttons & Pinhole

1 * Power On/Off button

1 * Reset pinhole

1 * WPS button

Physical Features

Size

95mm*114mm*186 mm(L*W*H)

Weight

700gr

Material

ABS Housing IP30

Color

White

Installation

Tabletop

Power Module

Power Supply

Power adapter (Input: 100~240V, 50/60Hz)

Output Voltage

DC 12V

Output Current

DC 2A

Power Consumption

Max 24W

Environmental Parameters

Operating Temperature

-10℃ + 45℃

Storage Temperature

-20℃ + 70℃

Operating Humidity

%5 - %95 (Non-condensing）

Storage Humidity

%5 - %95 (Non-condensing）

Protection Class

IP30

Software Features

Status Management

System Status / Device Information

Mobile Network Status

WAN Status

LAN Status

WLAN Status

TR069 Status

Web GUI

CLI / Telnet / SSH

SNMPv2

SIM Lock, Band lock, Operator Lock

Traffic Statistics

Mobile Network

APN Management

PIN Code Management

Network Mode Selection

Mobile Data Switch & Roaming Switch

Short Message Service

Band Lock

Cell Lock

VoLTE/ VoNR

Mobile Network Self-Recovery

WAN Configuration

Operating Mode: Routing mode, Bridge mode IPv4, IPv6, IPv4/IPv6

PPPOE, DHCP Client/Server

DNS, Dynamic DNS

Uplink WAN mode: Cellular, Wired, Link-backup

LAN Configuration

DHCP Client/Server

NAT/NAPT

ALG

Virtual Server (Port Forwarding)

MAC Management

IGMP Snooping*

IGMP Proxy*

WiFi Configuration

Basic Settings (SSID, password, etc.)

Advanced Settings (protocol, BW, channel, etc.)

Cipher Mode (OPEN/WPA/WPA2/WPA3)

WiFi Protected Set-up

Multiple SSID

Band Steering

Guest WiFi

STA Management

Mesh Settings

Routing

Static routing v4/v6

VPN Protocol

L2TP/PPTP

IPSec

VxLAN

Security & Firewall

Basic firewall

Anti-attack (ARP, DDOS, etc.)

Anti-scan

Port filtering

MAC filtering

DMZ

Additional Functions

UPNP

Parent Control

Device Management

Cloud Management Platform (Optional)

Language Management

User Management

Firmware Update & Downgrade

Remote Management: TR069/XMPP*/SNMP FOTA

Reboot, Factory Reset

NTP Management

Configuration Export and Import

Diagnostics
