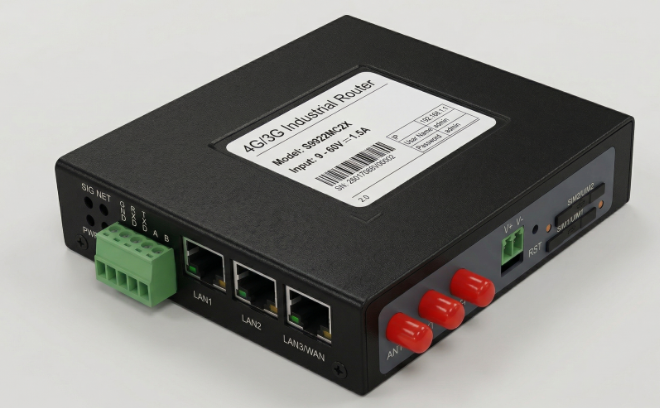

S9922MC2X-LTE
RICON S9922MC2X-LTE Router is designed and manufactured to meet industrial-grade quality standards for LTE cellular network technology. With its embedded cellular module, it is widely used in various scenarios such as ATM connectivity, remote office security connections, data collection, and more.
Ricon S9922MC2X-LTE Router provides maximum efficiency to customers while offering easy and automated product setup with ZeroTouch-RF, minimizing the need for field service and associated costs. The S9922MC2X-LTE Router is equipped with a single module, single SIM hardware feature. The throughput value of the S9922MC2X-LTE Router is 250 Mbps.
Ricon S9922MC2X-LTE routers can be easily configured via a web-based interface or CLI, and the Ricon Management System Controller (RMSC) allows bulk configuration to be sent to all Ricon products on the network. With RMSC, you can also monitor and manage all RICON products in your network with real-time and statistical data.
• LTE / 4G / 3G Support
• Failover/Failback
• IPSec VPN
• OpenVPN
• L2TP / PPTP
• GRE Tunneling
• DMVPN
• Firewall
• MAC / IP Filtering
• DoS/DDoS Protection
• HTTPS / SSH Access
• Static & Dynamic Routing
• BGP
• OSPF / RIP
• VLAN
• NAT / Port Forwarding / DMZ
• DHCP Server / Client
• Bridging / Passthrough
• Policy-Based Routing (PBR)
• Web GUI (HTTPS)
• CLI (SSH / Telnet)
• SNMP
• Syslog / Event Log
• OTA Firmware Update
• SMS Command
• Cloud Management Platform
• Wi-Fi 4
• WPA2
• MAC Filtering
• Serial Port (RS232/RS485)
• Connection Timers
• Ping / Uptime Watchdog
• Automation with SMS
• Task Definition with Script
• Modbus TCP / MQTT
• MQTT over TLS
• Identity-Based Firewall
• Cloud Access Control (CASB)
• TLS Inspection
General specifications | |
CPU | MediaTek MT7628 (MIPS24KEc, Single-Core, 580 MHz) |
Memory | 64MB |
HW Watchdog | UNION UM706RS |
SPI Flash | 16MB |
Interfaces and Configuration | |
LAN | 2 x 10/100TBase Ethernet |
WAN | 1x10/100 Mb |
DHCP Server | DHCP Server/Client/Relay, DNS |
Cellular Specifications | |
Cellular Modem Module | EC200A-EU |
Module Type | Mini PCIe |
Region | Europe / Asia-Pacific |
Chipset | ASR1803 |
Category | LTE:3GPP Release 9 LTE (Cat.4) |
Cellular Bands (SDX62) | LTE-FDD B1/ 3/ 5/ 7/ 8/ 20/ 28 LTE-TDD B38/ 40/ 41 WCDMA B1/ 5/ 8 GSM / EDGE B3/ 8 |
SIM Support | 2 x U-SIM Cards |
Security Features | |
Firewall | SPI Firewall Prevents anonymous requests from WAN port MAC Filtering, IP Filtering |
Filters | Access Restrictions (IP/MAC/URL per time period) DNS Filtering, MAC Filtering, Data Flow Filtering |
Misc | System log storage and forwarding Standard Linux TCPdump packet capture |
GNSS / GPS Features (Optional) | |
Chipset | (Optional) |
Supported Bands | (Optional) |
Default Constellations | (Optional) |
Number of Concurrent GNSS | (Optional) |
Protocols | OSPF Routing protocols RIP Routing protocols WPA2 Wi-Fi encryption protocols Industrial data communication protocols |
SBAS | (Optional) |
Management Features | |
Management Interfaces | Web GUI (HTTPS) CLI (SSH / Telnet) SNMP Syslog / Event Log M2M Management Platform (Cloud Platform Protocol V2.0) |
Version Management | (Optional) |
Accounts Management | Integrated Admin/Guest accounting |
Retrievable Parameters WEB UI / CLI / TR-069 / SNMP | CLI Command-line access SNMP Remote monitoring and management Web-based graphical interface management |
| Cellular Modem Features | |
APN Data Services | Dynamic APN support SIM PIN unlock (PIN password unlock) |
Modem Interface Configuration | SIM Slot selection Configurable MTU size for WAN port SIM card backup function switch Automatic mode / full frequency band mode Modem frequency band locking / Enable-Disable 4G PPP and DHCP dialing options, IMS function enable/disable |
Modem Failover | Support fail-over on interface drop. Support fault switching between SIM1/SIM2 and wired network Support Automatic connection recovery. |
Wi-Fi | |
Chipset | MediaTek MT7628 |
Wi-Fi Specifications | Supports 2.4GHz Wi-Fi IEEE 802.11b/g/n standards Max speed: up to 54 Mbps (IEEE 802.11b/g) Max speed: up to 150 Mbps (IEEE 802.11n, optional 300 Mbps) SISO |
Region | Global |
Wireless Security | Protocols: WEP, WPA, WPA2 WEP, WPA, WPA2, Client Mode (AES, TKIP) |
Mode | AP (Access Point) and Client modes |
Networking Features | |
Routing | Static Routing ,Dynamic Routing BGP OSPF / RIP VLAN NAT / Port Forwarding / DMZ DHCP Server / Client Bridging / Passthrough Policy-based Routing (PBR) |
Tunnels | IPSec VPN OpenVPN L2TP PPTP SSTP GRE Tunneling DMVPN Firewall MAC / IP Filtering DoS/DDoS Protection HTTPS / SSH Access |
Forwarding | NAT Support Port Forwarding QoS |
Ordering Information & Accessories | |
S9922MC2X | CAT4 Cellular Radio Interface (Quectel EC200A-EU) 2xLAN, 1xWAN Fast Ethernet, 2xSIM Slots 2.4GHz Wi-Fi 802.11b/g/n, 2x SIM Slots |
| Defaults | |
Default Box Contents | 1 x S9922MC2X Router Hardware 2 x Multi-Band Omni-Directional Antennas for 4G LTE 1 x WiFi antenna for 2.4GHz 1 x 1m. CAT5 Ethernet patch cable 2 x Fixed plate mounting kit 1 x 12VDC 1.0A 12W Power Supply |
