S9934-LTE OUT


Overview

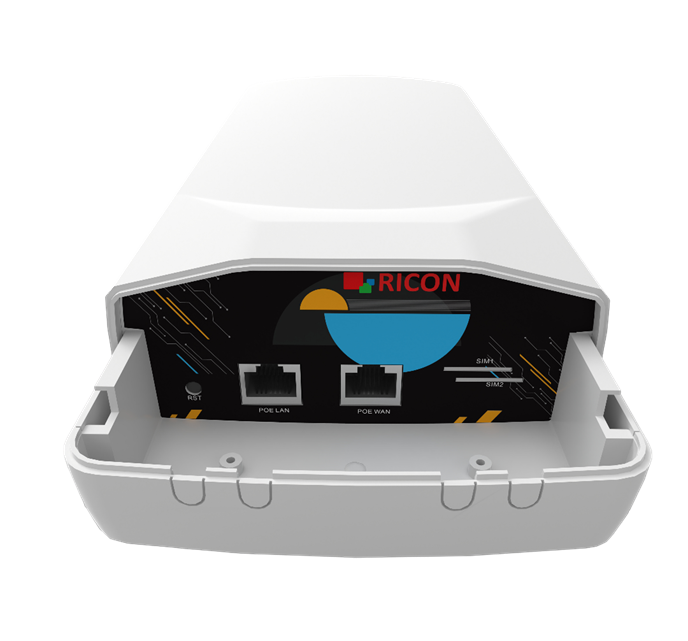

 RICON S9934-LTE OUT Router by Ricon is an industrial-grade device designed and manufactured according to 3G/LTE cellular network technology standards. Equipped with an embedded cellular module, it is widely used in applications such as ATM connectivity, remote office security connections, data collection, and more.

 S9934-LTE OUT Router provides customers with maximum service efficiency, while its Zero Touch SMS installation feature minimizes the need for field service by enabling easy and automatic product installation. S9934-LTE OUT is a single-module, single-SIM hardware device. It offers a maximum data transfer rate of 200 Mbps.

Thanks to its special design for outdoor use, S9934-LTE OUT operates reliably in harsh environmental conditions. Its ability to operate online with redundancy over WAN, Wi-Fi, and 3G/LTE networks significantly reduces the risk of network failure and ensures maximum network availability. This helps prevent potential losses caused by connection interruptions.



Key Features

• LTE / 4G / 3G Support

• Dual SIM / Multi-SIM

• Failover/Failback

• IPSec VPN

• OpenVPN

• L2TP / PPTP

• GRE Tunneling

• DMVPN

• Firewall

• MAC / IP Filtering

• DoS/DDoS Protection

• HTTPS / SSH Access

• Static & Dynamic Routing

• BGP

• OSPF / RIP

• VLAN

• NAT / Port Forwarding / DMZ

• DHCP Server / Client

• Bridging / Passthrough

• Policy-Based Routing (PBR)

• Web GUI (HTTPS)

• CLI (SSH / Telnet)

• SNMP

• Syslog / Event Log

• OTA Firmware Update

• SMS Command

• Cloud Management Platform

• Wi-Fi 4

• WPA2

• MAC Filtering

• Connection Timers

• Ping / Uptime Watchdog

• Automation with SMS

• Task Definition with Script

• Modbus TCP / MQTT

• MQTT over TLS

• Identity-Based Firewall

• Cloud Access Control (CASB)

• TLS Inspection


Specifications

General specifications


CPU

MT7628AN

Memory

128MB

HW Watchdog

Connection schedulers

Ping / Uptime Watchdog

SMS automation

Scripting tasks

SPI Flash

16MB


Cellular Specifications


Cellular Modem Module

EC200A-EU

Module Type

PCIE

Region

Global

Chipset

UNISOC 8910DM

Category

LTE: Cat.4

Cellular Bands (SDX62)


LTE-FDD

B1/ 3/ 5/ 7/ 8/ 20/ 28

LTE-TDD

B38/ 40/ 41

WCDMA

B1/ 5/ 8

GSM

900/1800 MHz

SIM Support

1 x U-SIM Slot


Security Features

Firewall

Identity-Based Firewall

Cloud Access Control (CASB)

TLS Inspection

Filters

Access restriction

Restricting wireless access

Misc

Security logging

Security alarms

Packet capture logging (Dump to file pcap)


GNSS / GPS Features (Optional)

Chipset

ATGM336D

Supported Bands

GPS/ QZSS: L1 C/A, L5

GLONASS: L1

Galileo: E1, E5a

BDS: B1I, B2a

Default Constellations

GPS + GLONASS + Galileo + BDS +

QZSS

Number of Concurrent GNSS

4 + QZSS

Protocols

OSPF Routing protocols

RIP Routing protocols

WPA2 Wi-Fi encryption protocols

Industrial data communication protocols

SBAS

WAAS, EGNOS, MSAS and GAGAN


Management Features

Management Interfaces

Web GUI (HTTPS)

CLI (SSH / Telnet)

SNMP

Syslog / Event Log

OTA Firmware Update

SMS Command

Cloud Management Platform

Version Management

Image Checksum

Active version and backup version

Auto rollback feature when remote upgrade fails

Accounts Management

Integrated Admin/Guest accounting

TACACS/TACACS+, Radius Auth. models

Retrievable Parameters

WEB UI / CLI / TR-069 / SNMP

CLI Command-line access

SNMP Remote monitoring and management

Web-based graphical interface management


Cellular Modem Features

APN Data Services

Dynamic APN support

SIM PIN management

Bridge Mode Support

Modem Interface Configuration

Full band-scan

Modem Band-Lock

Auto/On-Demand dial

Enable/Disable Radio

Pppd and DHCP dialing options

Modem Failover

Support fail-over on interface drop.

Support fail-over on traffic flow interruptions

Support Automatic connection recovery.


Wi-Fi


Chipset

MT7628AN

Wi-Fi Specifications

Wi-Fi Radio : 1x1 MIMO / 20/40 MHz

Frequency Band : 2.4 GHz only

Client Capacity : Up to ~32 concurrent clients (depends on firmware/device)

Wi-Fi Standard (2.4 GHz)    : IEEE 802.11 b/g/n

MIMO Configuration : 1x1

Channel Bandwidth : 20/40 MHz

Modulation  : BPSK, QPSK, 16-QAM, 64-QAM

Tx Output Frequency Range   : 2400–2483.5 MHz

Maximum Data Rate : Up to 150 Mbps (with 40 MHz channel)

Security Protocols : WEP, WPA, WPA2 (AES/TKIP)

Total Wi-Fi Throughput : Up to ~150 Mbps (ideal conditions, 802.11n, 40 MHz)

Region

Global

Wireless Security

Protocols:     WEP, WPA, WPA2

Encryption: AES, TKIP

Mode

Accesspoint, WiFi Client (Station) modes supported

**MU-MIMO is supported with both modes above

**2x2 DL MIMO is supported with both modes above


Networking Features

Routing

Static Routing ,Dynamic Routing

BGP

OSPF / RIP

VLAN

NAT / Port Forwarding / DMZ

DHCP Server / Client

Bridging / Passthrough

Policy-based Routing (PBR)

Tunnels

IPSec VPN

OpenVPN

L2TP

PPTP

SSTP

GRE Tunneling

DMVPN

Firewall

MAC / IP Filtering

DoS/DDoS Protection

HTTPS / SSH Access

Forwarding

NAT Support

Port Forwarding

DMZ Support

Load Balancing

Per-Package Forwarding Support


Ordering Information & Accessories

S9922MC2-LTE

CAT4 Cellular Radio Interface

1xLAN, 1xWAN Fast Ethernet, 1xSIM Slots

2.4GHz Wi-fi 802.11b/g/n


Defaults

Default Box Contents

1 x  S9922MC2-LTE Router Hardware

1 x 3M Antennas for 4G

1 x WiFi antenna for 2.4GHz and 5GHz

1 x 1m. CAT6 Ethernet patch cable
