S9924i-5G

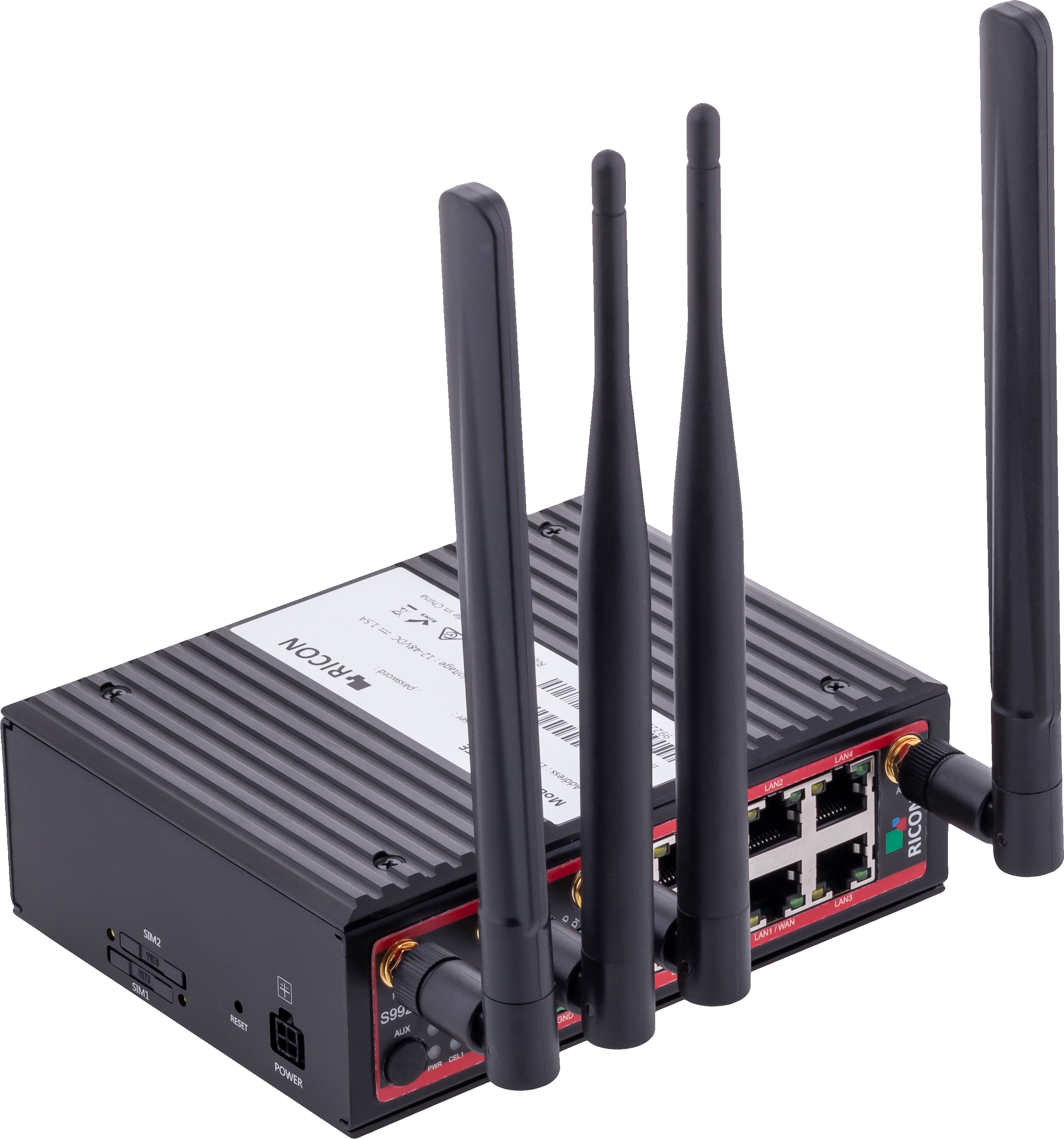

RICON S9924i-5G, is a high-performance router with 5G (3GPP Rel-16) cellular connectivity, designed for industrial and enterprise applications requiring high bandwidth. 4 × Gigabit LAN, 1 × Gigabit WAN, dual SIM and dual-band Wi-Fi support offer comprehensive connectivity options. Thanks to its RS232/RS485 serial interface, USB port and optional GNSS/GPS support, it can be easily integrated into different industrial systems and IoT infrastructures.
S9924i-5G supports network continuity with dual SIM and automatic failover/failback between cellular and wired connections. 5G connectivity capacity and multiple Gigabit Ethernet ports make it a flexible and powerful connectivity solution for high-resolution IP camera systems, industrial automation, IoT/Modbus gateways, enterprise branches and temporary field deployments.
S9924i-5G can be configured via the web interface and CLI; it can be monitored centrally and managed remotely through the Ricon Management System (RMS). With SMS-based Zero-Touch provisioning support, it simplifies the commissioning of devices and helps reduce the need for field intervention as well as overall operational costs.
- 5G / 4G / 3G support
- Dual SIM / Multi-SIM
- Failover/Failback
- IPSec VPN
- OpenVPN
- L2TP / PPTP
- GRE Tunneling
- DMVPN
- Firewall
- MAC / IP Filter
- DoS/DDoS Protection
- HTTPS / SSH Connection
- Static & Dynamic Routing
- BGP
- OSPF / RIP
- VLAN
- DHCP Server / Client
- Bridging / Passthrough
- Policy-based Routing (PBR)
- Web GUI (HTTPS)
- CLI (SSH / Telnet)
- SNMP
- TR-069
- SMS Commands
- Cloud Management Platform
- Wi-Fi 5
- MAC Filtering
- Gigabit Ethernet ports
- USB Port
- Serial Port (RS232/RS485)
- GPIO
- Connection Timers
- Ping / Uptime Watchdog
- Automation via SMS
- Task definition via script file
- Modbus TCP / MQTT
- MQTT over TLS
- Identity-Based Firewall
- Cloud Access Control (CASB)
- TLS Inspection
| General Specs | |
| CPU | MT7621 Dual-Core MIPS 1004Kc @880MHz |
| Memory | 512MB |
| HW Watchdog | Connection timers Ping / Uptime Watchdog SMS automation Script tasks |
| SPI Flash | 16MB |
| Interfaces and Configuration | |
| LAN | 4 x 10/100/1000 BaseT(MDI-X) |
| WAN | 1 x 10/100/1000 BaseT(MDI-X) |
| DHCP Server | DHCP Server/Client/Relay, DNS |
| Cellular Features | |
| Cellular Modem Module | Quectel RM500U-EA |
| Module Type | M.2 |
| Region | Global |
| Category | 5G NR SA/NSA (3GPP Rel-16) • LTE-A Cat 12 (DL) / Cat 13 (UL) |
| Cellular Bands | 5G NR/NSA n1/ 3/ 7/ 28/ 38/ 40/ 41/ 77/ 78 5G NR/SA n1/ 3/ 7/ 28/ 38/ 40/ 41/ 77/ 78 LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28/ 66 LTE-TDD B38/ 40/ 41 WCDMA B1/ 2/ 5/ 8 Carrier Aggregation: Supported |
| SIM Support | 2 x U-SIM Cards |
| Security Features | |
| Firewall | Identity-Based Firewall Cloud Access Control (CASB) TLS Inspection |
| Filters | Access restriction Wireless access restriction |
| Misc | Security log Security alarms Packet capture log (pcap to dump file) |
| GNSS / GPS Features (Optional) | |
| Chipset | ATGM336H-5N32 |
| Supported Bands | GPS/ QZSS: L1 C/A, L5 GLONASS: L1 BDS: B1I, B2a |
| Default Constellations | GPS + GLONASS + BDS + QZSS |
| Number of Simultaneous GNSS | 4 + QZSS |
| Protocols | OSPF Routing protocols RIP Routing protocols WPA2 Wi-Fi encryption protocols Industrial data communication protocols |
| SBAS | WAAS, EGNOS, MSAS and GAGAN |
| Management Features | |
| Management Interfaces | Web GUI (HTTPS) CLI (SSH / Telnet) SNMP TR-069 Syslog / Event Log OTA Firmware Update SMS Command Cloud Management Platform |
| Version Management | Image Checksum Active version and backup version Automatic rollback when remote upgrade fails |
| Account Management | Integrated Admin/Guest accounting TACACS/TACACS+, Radius Auth. models |
| Retrievable Parameters WEB UI / CLI / TR-069 / SNMP | CLI command-line access SNMP remote monitoring and management Web-based graphical interface management |
| Cellular Modem Features | |
| APN Data Services | Dynamic APN support SIM PIN management Bridge Mode Support |
| Modem Interface Configuration | SIM Slot selection Full band scan Modem Band Lock Automatic/On-demand dialing Enable/Disable Radio Pppd and DHCP dialing options |
| Modem Backup | Supports backup on interface failure. Supports backup on traffic flow interruptions Supports automatic connection recovery. |
| Wi-Fi | |
| Chipset | MT7615D |
| Wi-Fi Features | 2x2/40MHz Radio 2.4GHz, 5GHz full-band support Up to 20~25 simultaneous clients 2.4 GHz (WiFi4) IEEE802.11 a/b/g/n 20/40MHz Support Tx Output Frequency Range: 2400~2496 MHz 5.8 GHz (WiFi5) IEEE802.11 n/ac 20/40MHz Support Tx Output Frequency Range: 4900~5925 MHz |
| MIMO | 2x2 DL MIMO MU-MIMO |
| Region | Global |
| Wireless Security | Protocols: WEP, WPA, WPA2, WPA3 Client Encryption: AES, TKIP |
| Mode | Access Point and WiFi Client (Station) modes are supported **MU-MIMO is supported in both of the above modes **2x2 DL MIMO is supported in both of the above modes |
| Network Features | |
| Routing | Static Routing, Dynamic Routing BGP OSPF / RIP VLAN NAT / Port Forwarding / DMZ DHCP Server / Client Bridging / Passthrough Policy-Based Routing (PBR) Support |
| Tunnels | IPSec VPN OpenVPN L2TP PPTP SSTP GRE Tunneling DMVPN Firewall MAC / IP Filtering DoS/DDoS Protection HTTPS / SSH Access |
| Routing | NAT Support Port Forwarding DMZ Support |
| Load Balancing | Per-Packet Routing Support |
| Ordering Information and Accessories | |
| S9924i-5G | High-Speed Mobile Router - 5G NR Single Cellular Radio Interface 4xLAN Gigabit, 1xWAN Gigabit, 2xSIM Slots 2.4 GHz-5 GHz Wi-Fi 802.11b/g/n/ac |
| Defaults | |
| Default Box Contents | 1 x S9924i-5G Router Hardware 1 x 12VDC 1.5A 18W Power Supply 2 x Serial connectors 1 x Rack mount kit 4 x RCN-LTE-ANT-IND LTE Antennas 1 x WiFi antenna for 2.4GHz and 5GHz 1 x 1m. CAT6 Ethernet patch cable |
