S9931-CAT1

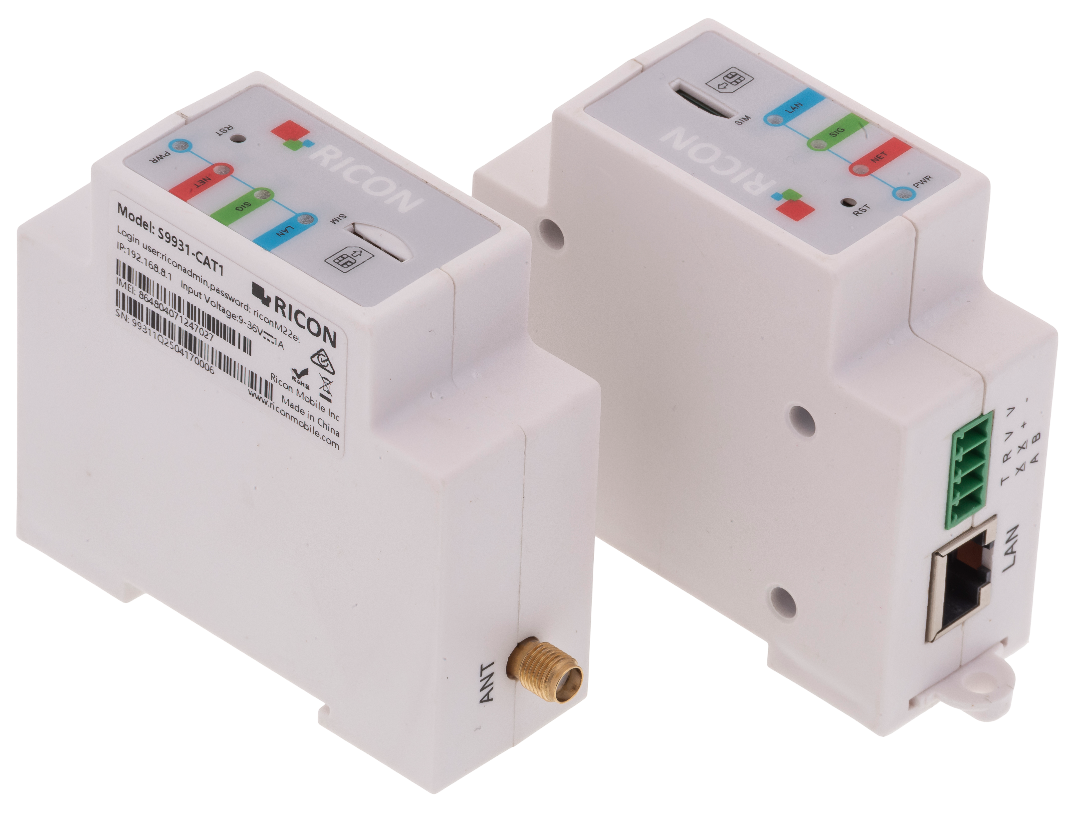

RICON S9931-CAT1 Router, designed and manufactured to industrial-grade quality standards, is an LTE/4G/3G-supported router. Featuring an embedded LTE Cat.1 module, it ensures reliable communication for applications such as ATM connections, remote office security, and data collection. It provides compact network connectivity with 1 LAN port and 1 SIM slot. 2.4GHz Wi-Fi support enables wireless connections for multiple devices. Easy setup and management are provided through a web-based GUI (HTTPS), CLI (SSH/Telnet), and Ricon Management System Controller (RMSC). RMSC allows real-time and statistical monitoring and management of all Ricon products on the network.
• LTE / 4G / 3G Support
• 1 x 10/100 Mb LAN
• 1 x U-SIM Slot
• Serial Port (RS232/RS485)
• Modbus TCP / MQTT
• IEEE 802.11b/g/n (2.4GHz)
• VLAN Support (Link Tag)
• Web GUI (HTTPS) / CLI (SSH / Telnet) / SNMP
• Remote Management (RMSC)
• Identity-Based Firewall
• TLS Inspection
• DHCP Server / Client / Relay
• Dual SIM / Multi-SIM
• Failover/Failback
• IPSec VPN
• OpenVPN
• L2TP / PPTP
• GRE Tunneling
• DMVPN
• Firewall
• MAC / IP Filtering
• DoS/DDoS Protection
• HTTPS / SSH Access
• Static & Dynamic Routing
• BGP
• OSPF / RIP
• NAT / Port Forwarding / DMZ
• Bridging / Passthrough
• Policy-Based Routing (PBR)
• Syslog / Event Log
• OTA Firmware Update
• SMS Command
• Cloud Management Platform
• Wi-Fi 4
• SSID / Multi-SSID
• WPA2
• MAC Filtering
• Connection Timers
• Ping / Uptime Watchdog
• Automation with SMS
• Task Definition with Script
• MQTT over TLS
• Cloud Access Control (CASB)
• TLS Inspection
General specifications | |
CPU | MT7628AN |
Memory | 128MB |
HW Watchdog | Connection schedulers Ping / Uptime Watchdog SMS automation Scripting tasks |
SPI Flash | 16MB |
Interfaces and Configuration | |
LAN | 1x10/100 Mb |
WAN | 1x10/100 Mb (Optional) |
DHCP Server | DHCP Server/Client/Relay, DNS |
Cellular Specifications | |
Cellular Modem Module | EG800K |
Module Type | PCIE |
Region | Global |
Chipset | UNISOC 8910DM |
Category | LTE: Cat.1 |
Cellular Bands (SDX62) | LTE-FDD: B1/3/5/7/8/20/28 |
SIM Support | 1 x U-SIM Slot |
Security Features | |
Firewall | Identity-Based Firewall Cloud Access Control (CASB) TLS Inspection |
Filters | Access restriction Restricting wireless access |
Misc | Security logging Security alarms Packet capture logging (Dump to file pcap) |
GNSS / GPS Features | |
Chipset | ATGM336D |
Supported Bands | GPS/ QZSS: L1 C/A, L5 GLONASS: L1 Galileo: E1, E5a BDS: B1I, B2a |
Default Constellations | GPS + GLONASS + Galileo + BDS + QZSS |
Number of Concurrent GNSS | 4 + QZSS |
Protocols | OSPF Routing protocols RIP Routing protocols WPA2 Wi-Fi encryption protocols Industrial data communication protocols |
SBAS | WAAS, EGNOS, MSAS and GAGAN |
Management Features | |
Management Interfaces | Web GUI (HTTPS) CLI (SSH / Telnet) SNMP Syslog / Event Log OTA Firmware Update SMS Command Cloud Management Platform |
Version Management | Image Checksum Active version and backup version Auto rollback feature when remote upgrade fails |
Accounts Management | Integrated Admin/Guest accounting TACACS/TACACS+, Radius Auth. Models |
Retrievable Parameters WEB UI / CLI / TR-069 / SNMP | CLI Command-line access SNMP Remote monitoring and management Web-based graphical interface management |
| Cellular Modem Features | |
APN Data Services | Dynamic APN support SIM PIN management Bridge Mode Support |
Modem Interface Configuration | Full band-scan Modem Band-Lock Auto/On-Demand dial Enable/Disable Radio Pppd and DHCP dialing options |
Modem Failover | Support fail-over on interface drop. Support fail-over on traffic flow interruptions Support Automatic connection recovery. |
Wi-Fi | |
Chipset | MT7628AN |
Wi-Fi Specifications | Wi-Fi Radio : 1x1 MIMO / 20/40 MHz Frequency Band : 2.4 GHz only Client Capacity : Up to ~32 concurrent clients (depends on firmware/device) Wi-Fi Standard (2.4 GHz) : IEEE 802.11 b/g/n MIMO Configuration : 1x1 Channel Bandwidth : 20/40 MHz Modulation : BPSK, QPSK, 16-QAM, 64-QAM Tx Output Frequency Range : 2400–2483.5 MHz Maximum Data Rate : Up to 150 Mbps (with 40 MHz channel) Security Protocols : WEP, WPA, WPA2 (AES/TKIP) Total Wi-Fi Throughput : Up to ~150 Mbps (ideal conditions, 802.11n, 40 MHz) |
Region | Global |
Wireless Security | Protocols: WEP, WPA, WPA2 |
Networking Features | |
Routing | Static Routing ,Dynamic Routing BGP OSPF / RIP VLAN NAT / Port Forwarding / DMZ DHCP Server / Client Bridging / Passthrough Policy-based Routing (PBR) |
Tunnels | IPSec VPN OpenVPN L2TP PPTP SSTP GRE Tunneling DMVPN Firewall MAC / IP Filtering DoS/DDoS Protection HTTPS / SSH Access |
Forwarding | NAT Support Port Forwarding DMZ Support |
Load Balancing | Per-Package Forwarding Support |
Ordering Information & Accessories | |
S9931-CAT1 | CAT1 Cellular Radio Interface 1xLAN Fast Ethernet, 1xSIM Slots 2.4GHz Wi-fi 802.11b/g/n |
Defaults | |
Default Box Contents | 1 x S9931-CAT1 Router Hardware 1 x 3M Antennas for 4G 1 x 4 PIN Terminal block connector 1 x 1m. CAT6 Ethernet patch cable |
